RTE Seires

 더 신뢰할 수있는 측정, 더 많은 도구와 빠른 결과, 측정의 어려움을 즐거움으로!!!

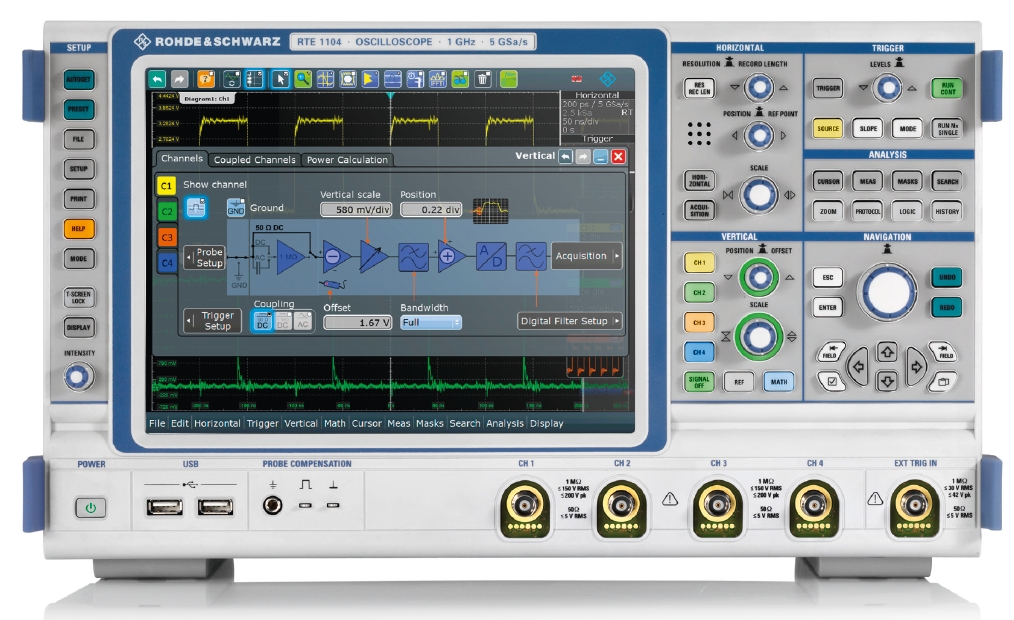

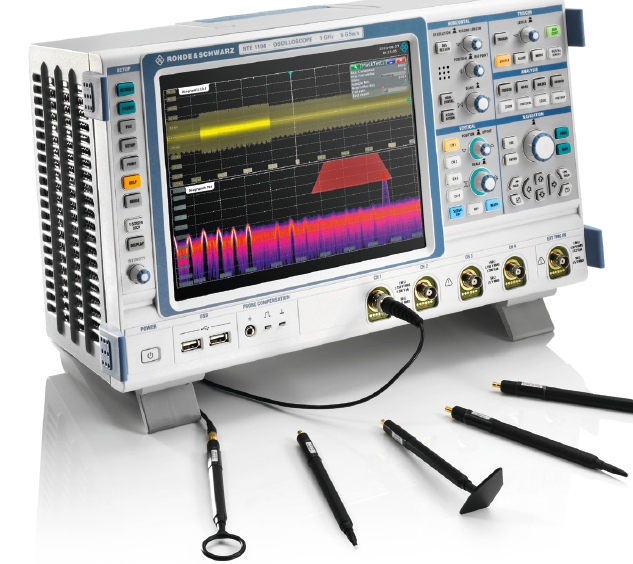

로데 슈바르즈에서는 미드레인지 제품군의 오실로스코프  RTE시리즈를 출시하였습니다.
RTE시리즈는 임베디드 디자인 개발에서 전력 전자 분석까지….. 일반적인 디버깅 및 일상적인 T & M 작업에 대한 빠른 솔루션을 제공합니다.

• SPEC
• DATA SHEET

• MODEL	RTE1022	RTE1024	RTE1032	RTE1034	RTE1052	RTE1054	RTE1102	RTE1104
  Ch	2	4	2	4	2	4	2	4
  Analog bandwidth	200MHz	200MHz	350 MHz	350 MHz	500 MHz	500 MHz	1GHz	1GHz
  Rise time	1.75ns		1ns		700ps		350ps
  Input sensitivity	50 Ω: 1 mV/div to 1 V/div 1 MΩ: 1 mV/div to 10 V/div
  ENOB of A/D converter	> 7 bit (meas.) (full-scale sine wave, < –3 dB frequency Bandwidth)
  Sampling rate	Max. 5 Gsample/s on each channel
  Acquisition memory	10/20M sample	10/40M sample	10/20M sample	10/40M sample	10/20M sample	10/40M sample	10/20M sample	10/40M sample
  Acquisition rate	> 1,000,000 waveforms/s
  Timebase range	Timebase range 50 ps/div to 50 s/div
  Timebase accuracy	±5 ppm (after delivery/calibration)
  Trigger types	edge, glitch, width, runt, window, timeout, interval, slew rate, data2clock, pattern, state, Serial, pattern, TV/video, serial bus trigger (optional)
  Automated measurements	Automated measurements 78 measurement functions
  Cursor measurements	2 cursor sets, each consisting of two horizontal and two vertical cursors
  Waveform mathematics	4 math waveforms; mathematics, logical operations, comparison, FIR filter, FFT

•  RTE_dat-sw_en_3606-9033-22_v0103    데이터시트

  RTE_bro_en_3606-9033-12_v0100  제품 브로셔
