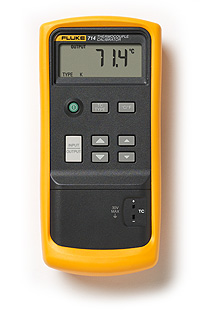

Fluke 714 Thermocouple Calibrato

Range

-200 to 1800 ºC, depending on type

Resolution

0.1 ºC

Accuracy

0.3 ºC + 10 µV

Note: 9 TC types; J K T E R S B per NIST 175 and ITS-90 L U per DIN 43710 and IPTS-68

Range

-10 to 75 mV

Resolution

0.01 mV

Accuracy

0.025% + 1 count

LCD, 5 digit temperature and current sim ultaneous

-10ºC to 55ºC

-40ºC to 60ºC

95% (10 ºC to 30 ºC)

75% (30 ºC to 40 ºC)

45% (40 ºC to 50 ºC)

35% (50 ºC to 55 ºC)

3,000m max

CSA C22.2 No. 1010.1:1992

187 mm L x 87mm W x 32 mm

(7.93 in. L x 3.86 in. W x 2.06 in D)

Approx. 330 g

(21 oz)

3 years

Random, 2G, 5-500 Hz

1m drop test

Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
