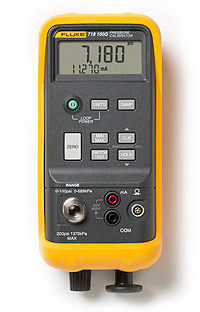

Fluke 718 Process Calibrato

718 Series

Measure Pressure

(internal sensor)

Accuracy

0.05% full scale

Functions

zero, min/max, hold, damp

Note

Dry air, non-corrosives only

718 1G

Range

-1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)

Resolution

0.0001 psi, 0.001 mbar, 0.0001 kPa

Over Pressure

5x Full Scale

Functions

Zero, Min, Max, Hold, Damp

718 30G

Range

-12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa)

Resolution

0.001 psi, 0.1 mbar, 0.01 kPa

Over Pressure

5x Full Scale

Functions

Zero, Min, Max, Hold, Damp

718 100G

Range

-12 PSI to 100 PSI, (-850 mbar to 7 bar, -85 to 689.48 kPa)

Resolution

0.01 psi, 0.1 mbar, 0.01 kPa

Over Pressure

2x Full Scale

Functions

Zero, Min, Max, Hold, Damp

718 300G

Range

-12 PSI to 300 PSI, (-850 mbar to 20 bar, -85 to 2068.42 kPa )

Resolution

0.01 psi, 1 mbar, 0.1 kPa

Over Pressure

375 PSI 25 bar

Functions

Zero, Min, Max, Hold, Damp

Range

29 pressure modules, 0 – 1 in H20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs

Resolution

Per pressure module specs

Accuracy

To 0.025 % of full span, per pressure module specs

Functions

Zero, Min, Max, Hold, Damp

Note: media compatibility per pressure module specs

Range

-12 PSI or -850 mbar to full scale Supported Pressure Units; psi, in H20 (4 °C), in H20 (20 °C), cm H20 (4 °C), cm H20 (20 °C), bar, mbar, kPa, inHg, mmHg, kg/cm

Loop Power

Range: 24 V dc

Accuracy: +/- 10 %

Note: Drive; 20 mA into 1000 Ω for battery > 6.8V; 700 Ω for battery 5.8 to 6.8 V

mA Measure

Range: 0 mA to 24 mA

Resolution: 0.001 mA

Accuracy: 0.015 % + 1 count

30 volts: Non-operating

-40 °C to 60 °C

-10 °C to 55° C

95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C)

3,000 M max

1 M drop test

Random, 2 g, 5 Hz – 500 Hz

CSA C22.2 No. 1010.1: 1992

EN50082-1: 1992 and EN55022: 1994 Class B

216 mm x 94 mm x 66 mm (8.50 in x 3.72 in x 2.60 in)

992 g (35 oz)

9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718

4 to 20 hours typical, depending on functions used

Three years (one year on pressure pump in Fluke 718)

LCD, 5 digit pressure and current simultaneous

For use with non-corrosive gasses
