Fluke 87-5, 83-5 Multimeter

“ 87V는 모터드라이브, 공장자동화, 배전소, 전기기기 등에서의 많은 문제를 해결할 수 있는 측정기능, 고장탐구특성, 분해능, 정확도를 가지고 있습니다 ”

FEATURE

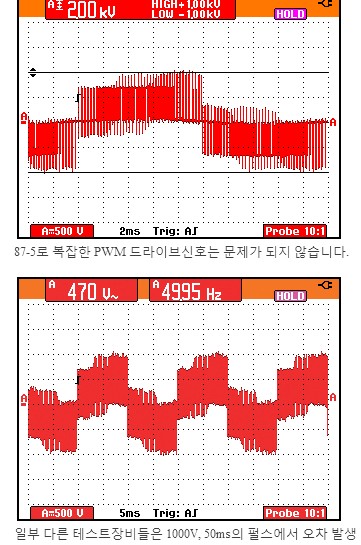

•모터드라이브의 전압, 주파수를 정확하게 측정 (87V only) • 온도측정: 장비자체에 온도측정기능 탑재 (87V only) • 편리한 측정을 위한 Magnetic Hanger (옵션) • 이전 모델에 비해 커진 디스플레이 창과 2단계 백라이트   ※ 전기적 안전도 • 모든 입력단은 ANSI/SA S82.01과 EN61010-1 CAT IV 600V, CAT III 1000V를 준수 • 8000V의 임펄스에 견딜 수 있어 서지나 스파이크에 대한 위험 감소   ※ 모터드라이브 신호의 정확한 측정 “87-5는 모터드라이브 신호와 같은 복잡한 신호를 다룰 수 있도록고안되었습니다” • ASD와 모터단자에서 노이즈가 포함된 펄스폭변조 AC전압을 정확하게 측정 • ASD 캐리어주파수에 의한 영향없이 주파수(모터스피드)를 정확하게 측정 • ASD에 표시된 값과 87V의 표시값을 비교 • 큰 드라이브시스템의 고주파, 고에너지의 노이즈신호 차단

Feature	83V	87V
True-rms방식의 전압, 전류 측정		•
모터신호를 정확하게 측정, LPF 기능		•
0.05 % dc accuracy		•
6000 counts, 3-3/4 digits	•	•
4-1/2 digit (20,000 counts)		•
1000 V ac and dc 측정	•	•
10 A까지 측정	•	•
온도측정 기능 (TC온도프루브 포함)		•
200 kHz의 주파수 및 %, duty cycle 측정	•	•
저항, 도통, 다이오드 테스트	•	•
10,000 µF 캐패시턴스 범위	•	•
Min/Max-Average 기능	•	•
Fast Min/Max (250 µs의 과도신호 검출)	•	•
리드에 의한 오차 제거, Relative mode	•	•
자동, 수동 레인지 설정	•	•
터치 홀드 기능	•	•
디스플레이 창 확대, 2단계 백라이트 기능	•	•
Analog Bargraph	•	•
입력단자에 잘못된 삽입시 경고음 발생	•	•
Sleep 모드 (배터리시간 향상)	•	•
교정용 Seal을 제거없 배터리 교체	•	•
교체가 가능한 홀스터	•	•
평생 보증기간	•	•

  ※ 제품구성 및 콤보키트

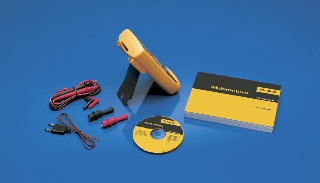

	Fluke 80-5의 기본 구성품 • TL75 테스트리드 • AC72 악어클립 • 홀스터 • 9V 배터리 • 기본 매뉴얼 책자 • 상세 메뉴얼 CD • 80BK 온도프루브 (87-5 only)

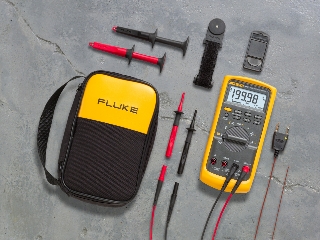

	Fluke-87V / E2 키트 • 87V 멀티미터 • TL224 테스트리드 • AC220 악어클립 • TP38 테스트프루브 • C115 케이스 • TPAK (Magnetic Hanger) • 80BK 온도프루브

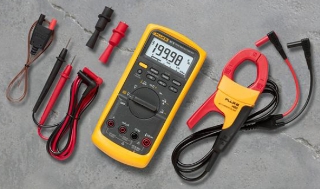

	Fluke-87V / IMSK 키트 • 87V 멀티미터 • i4000 AC 400 전류클램프 • 80BK-A TC 온도프루브 • TL75 테스트리드 • AC72 악어클립

• SPEC
• DATA SHEET

• Specification
  Voltage DC	Maximum Voltage: 1000V Accuracy: Fluke 83 V: ±(0.1%+1) Fluke 87 V: ±(0.05%+1) Maximum Resolution: Fluke 83 V: 100 µV Fluke 87 V: 10 µV
  Voltage AC	Maximum Voltage: 1000V Accuracy: Fluke 83 V: ±(0.5%+2) Fluke 87 V: ±(0.7%+2) True RMS AC Bandwidth Fluke 83 V: 5kHz Fluke 87 V: 20kHz* *with low pass filter; 3db @ 1kHz Maximum Resolution: 0.1 mV
  Current DC	Maximum Amps: 10A (20 A for 30 seconds maximum) Amps Accuracy: Fluke 83 V: ±(0.4%+2) Fluke 87 V: ±(0.2%+2) Maximum Resolution: Fluke 83 V: 0.01 mA Fluke 87 V: 0.01 µA
  Current AC	Maximum Amps: 10A (20 A for 30 seconds maximum) Amps Accuracy: Fluke 83 V: ±(1.2%+2) Fluke 87 V: ±(1.0%+2) True RMS Maximum Resolution: 0.1 µA
  Resistance	Maximum Resistance: 50 MΩ Accuracy: Fluke 83 V: ±(0.4%+1) Fluke 87 V: ±(0.2%+1) Maximum Resolution: 0.1Ω
  Capacitance	Maximum Capacitance 9,999 µF Accuracy ±(1%+2) Maximum Resolution 0.01 nF
  Frequency	Maximum Frequency 200 kHz Accuracy ±(0.005%+1) Maximum Resolution 0.01 Hz
  Duty Cycle	Maximum Duty Cycle 99.9% Accuracy ±(0.2% per khz +0.1%) Maximum Resolution 0.1%
  Temperature Measurement	Fluke 87 V, 87 V/E: -200.0°C – 1090°C -328.0°F – 1994.0°F excluding probe
  80 BK Temperature Probe	-40.0°C – 260°C -40.0°F – 500°F, 2.2°C or 2% whichever is greater
  Conductance	Maximum Conductance 60.00 nS Accuracy ±(1.0%+10) Maximum Resolution 0.01 nS
  Diode	Range: 3 V Resolution: 1 mV Accuracy: ± (2 % + 1)
  Duty Cycle Range	Accuracy: Within ± (0.2% per kHz + 0.1 %)
